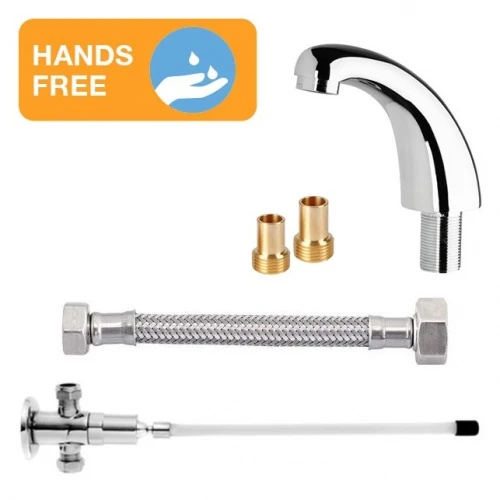

HART Knee Operated Flow Control And Fixed Spout Set | Hands Free Washing

A commercial use Hands Free washing station including multi direction knee operated control, fixed basin spout and extra long hose – supplys water to a remote outlet for hands free water dispensing.

‘Hands free operation to combat the spread of viruses’

• Suitable for less abled & wheelchair use where strength/mobility is a problem
• Ideal for food industry use, healthcare, commercial/education where hands free operation is required
• Runs for approx. 10-12sec when lever pushed
• Heavy duty cast design spout to suit high volume users
• 15mm compression inlet/outlets
• For use with cold, hot or premixed water (max 85° C)
• 1/2″ BSP connections
• Includes 100cm long connector hose – allows spout to be positioned anywhere convenient
• 1/2″ Male x 3/4″ Female connections
• Includes a pair of solid brass tap tail adaptors – 1/2″ BSP to 15mm

Technical

Knee Control

Min pressure: 0.5 Bar
Lever length: approx. 30cm
Total reach from wall: 425mm

Flow Rates
0.5 Bar: 3l/min
3.0 Bar: 15l/min

Spout

Reach: 105mm
Overall spout height: 85mm
