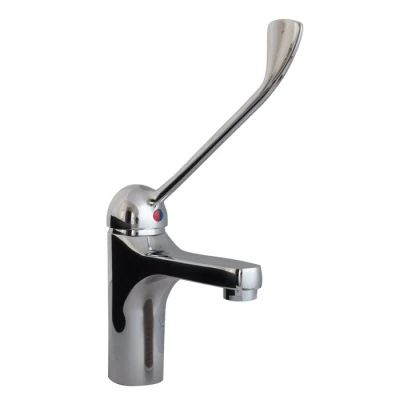

HART Thermassure ‘Anti-Scald’ Lux Medical Basin Tap

A unique medical/healthcare basin mixer tap with built in dual protection anti scald technology – eliminates the need for a TMV valve and associated costs with maintenance.

1. Cuts off burning water to prevent scalding in the event of cold water failure
2. Ensures the maximum temperature will not exceed 45° C even when lever is pushed fully to hot

A designer series medical and healthcare compliant extended single lever basin mixer tap which combines easy to use elbow lever operation with thermostatic temperature control. Ideal for hospitals, dental practices and GP surgeries and care/nursing homes

• Temperature safe – temperature limited to 45° C even at maximum hot position

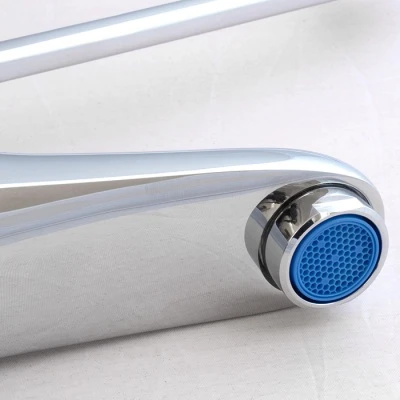

• Fitted with Neoperl laminar-flow clinic aerator, which prevents airborne particles entering the water stream, hence reducing spread of infection
• Supplied with Mediflex hoses – inlet hoses made from non-taint polyethylene liner (WRAS & worldwide drinking water approved)
• Ideal for users who are at risk of accidental scalding
• Helps care home owners maintain a safe environment
• DDA compliant with long easy to use elbow lever
• Note: Suitable for high pressure systems only e.g. combi boilers, pump system etc

‘A high specification healthcare use tap – for where temperature safety is paramount’







Technical

Reach of spout: 110mm
Height of spout outlet: 85mm
Suitable for high pressure systems only – combi or megaflow if in a domestic property
Minimum recommended operating pressure: 1.0 bar pressure dynamic but 1.5 bar for best performance
Recommended hot water supply minimum 60°C
Water pressure should be balanced supply
If cold water is greater than hot pressure, we recommend a PRV is fitted

HH-TS001MED data sheet
