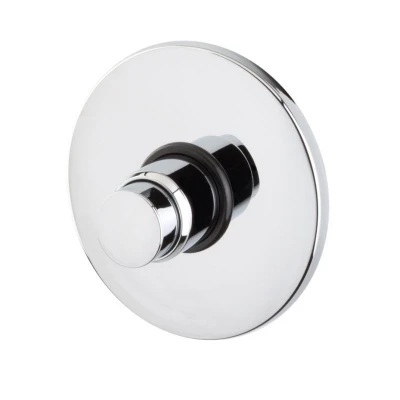

Hart Timed Flow Shower Control – Concealed

A timed flow non concussive shower valve – concealed design (for hidden/behind the wall pipework).

• For school/commercial use
• Auto shut-off
• 15-25 seconds flow time
• Can be combined with any TMV Blending Valve for totally safe temperature control
• WRAS approved

Specification

Flow time: 25 secs
Min pressure: 0.2 Bar
Max pressure: 5 bar

Flow rates
1 Bar: 6.5L/Min
5 bar: 15L/Min
