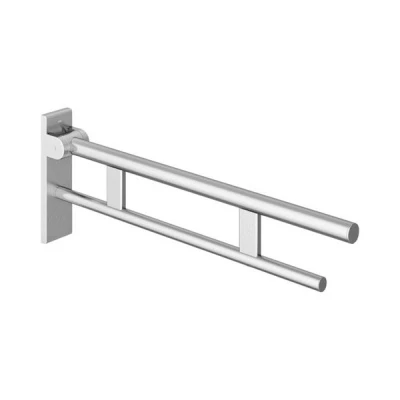

HEWI Duo 750mm Hinged Support Rail – Satin Stainless Steel

An architect standard ultra strong 750mm projection hinged  support rail in satin stainless finish – For washrooms, hotels and Doc M requirements

• Satin stainless steel finish
• Two parallel round gripping levels arranged directly on top of each other
• Can be folded upwards and folded downwards with safety braked movement
• Weight capacity up to 100 kg made of stainless steel
• Wall plate made of polyamide with integrated steel core and cover made of stainless steel
• For mounting with non-corrosive and tested HEWI fixing materials for different wall systems (to be ordered separately)
• Sealing tape for sealing the fixing points is included
• Floor supports available for retrofitting
• Produced in accordance with EU Regulation 2017/745 for medical aids

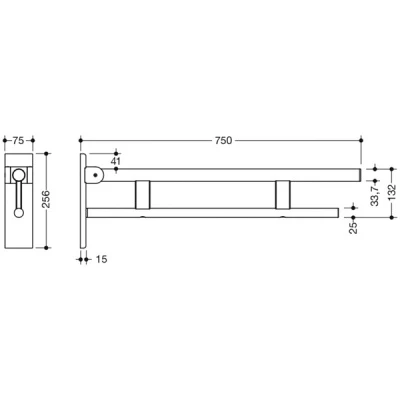

Tech/Dimensions

• Projection: 750mm
• Height: 256mm: 88 mm
• Width: 75mm

Ideal for DocM standard shower rooms
