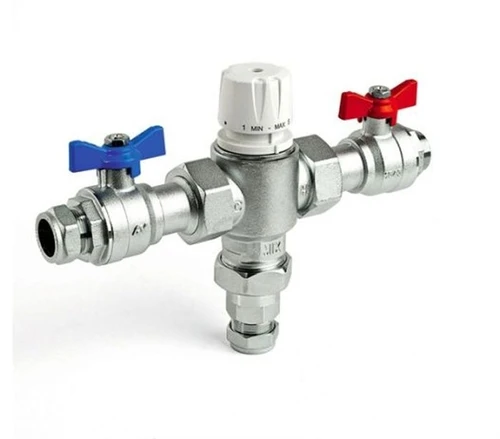

Intamix Pro-V Safeguard Valve – 28mm

A TMV3 failsafe thermostatic mixing valve providing centralised mixing for use with  in high capacity/multiple outlet situations.

• TMV3 Scheme approved
• 28mm inlet & outlet size
• Automatic cutoof safeguard
• Suitable for high output installations such as shower blocks, multple banks of taps, public washrooms.
• Fitted with isolating unions to allow fast access without the need to shut off the water supply

Safety Features

• Tamper proof head
• Automatic shut off  if hot or cold supplies fail
• Temperature stability to +/- 2 degrees

Technical Information

Temp adjustment range: 30-65 degrees C
Temperature stability: +/- 2 degrees C
Max inlet temperature: 85 degrees C
Max operating pressure: 14 bar
Max pressure diff: 2:1

Outputs:
20 l/Min @ 0.5 bar
51 l/min @ 3.5 bar
