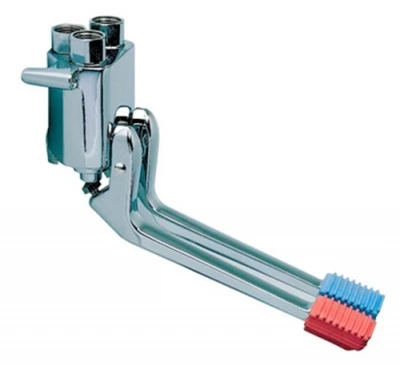

The Intatec Multi Control 2 Pedal Wall Mounted Foot Mixing Valve

A wall mounted ‘non touch’ mixing valve operated by depressing 2 pedals by foot – each pedal controls the hot/cold water flow – Provides a high level of hygiene by eliminating hand contact

• Provides water to remote outlets or spouts
• Suitable for commercial & institutional kitchens, hygienic applications
• Strong, secure wall fixing
• Ideal for all uses where workers must not touch taps
• 1/2″ BSP connections
• Progressive action – increased pressure increases water flow

Specification

Flow time: 15 secs (adjustable by +/- 3 secs)
Min pressure: 0.5 Bar
Max pressure: 8 bar
Max recommended operating temperature: 70°c
