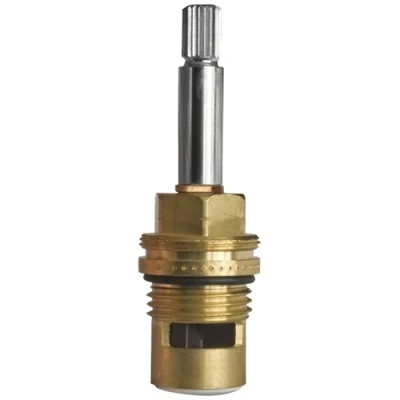

Unknown Long Stem Quarter Turn Valves – 1/2 Inch BSP Thread Size

The long stem quarter turn valves are suitable to replace many standard 1/2″ BSP fitting quarter turn valves which are fitted with long stems – often used in traditional design taps. Sold in pairs (left and right turn).

• Made in Germany
• 1 year warranty
• Chrome plated stems

Sizes

• 18.5mm diameter at the base
• The spline is 8mm nom. diameter with 20 teeth
• M4 thread in the spline
• Upper thread is M24 – Fits all shrouds and covers
• 1/2″ BSP thread (the thread that fits into the tap body)
• Length of stem: 36mm
