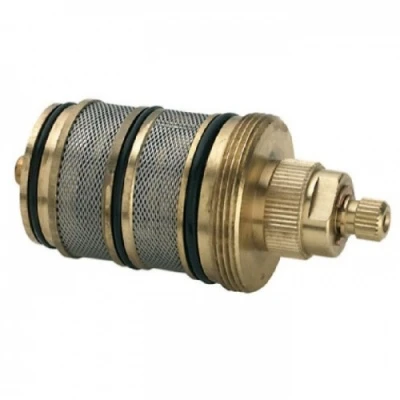

Unknown Thermo 3/4″ (40mm) Large Body Thermostatic Cartridge

A large body 3/4″ BSP (40mm diameter) replacement all metal thermostatic cartridge with stainless steel filter and safety system

Manufactured in Italy

• Fits many UK and European shower valves including Hudson Reed/Ultra
• Safety preset to 38 degrees
• Operating pressure: 1-5 bar
• Easy to fit – Screw in design
• May be fitted in concealed or exposed shower valves

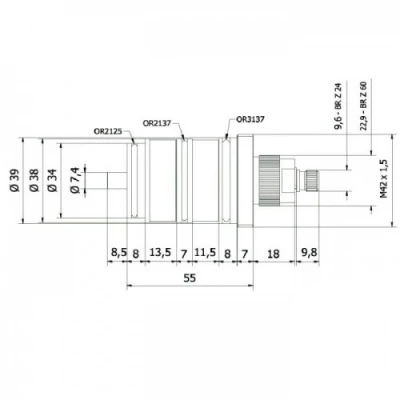

• Spline is approx. 9.5mm diameter with 24 teeth
• Height: 83mm

Technical

Maximum pressure (static): 10 bar
Recommended pressure (dynamic): 1-5 bar
Maximum inlet temperature : 85°C
Control range: 20÷50°C
Temperature of the inlet hot water: 65 °C
Temperature of the inlet cold water : 15 °C
